NEWEEK multi blade plank trim saw wood edge cutting machine

FOB Reference Price:Get Latest Price
$3,400.00 - $6,000.00 / Sets | 1 Set/Sets (Min. Order)
Type:
Circular Saw
Model Number:
WL 50
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, Sawmill
Condition:
New
Use:
Woodworking
Style:
Horizontal
Place of Origin:
Henan, China
Brand Name:
NEWEEK
Usage:
Woodworking
Voltage:
220/380 v
Power(W):
11 kw
Dimension(L*W*H):
2100*1000*1100 mm
Weight:
400 kg
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
Online support
Application:
Sawmill
Keywords:
plank trim saw wood edge cutting machine
Max Feeding Width:
60 cm
Feeding Thickness:
0.5-5 cm
Feeding Length:
30-400 cm
Feeding Speed:
12 m/min
Feeding Motor:
0.55 kw
Saw Blade Specs:
210*(2.0-2.4)*50*24P mm
Table Size:
50*70 cm (customized)
Blade Pieces:
10 pcs
Feature:
Infrared Calibration
Supply Ability
Supply Ability:
70 Set/Sets per Month
Packaging & Delivery
Packaging Details
Packing plank trim saw wood edge cutting machine in wooden case.
Port
Qingdao, Shanghai, Guangzhou
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 To be negotiated
Product Description

NEWEEK multi blade plank trim saw wood edge cutting machine

1. Plank trim saw wood edge cutting machine is used for trimming and sharding natural wide planks. It can divide the wide plank into multiple thin wooden strips, the fragments are accurate, and the sawing is small. It is the ideal equipment for all kinds of plate processing.
2. Plank trim saw wood edge cutting machine uses infrared alignment device to assist feed, with less wood loss.
3. Ultra - thin alloy saw blade, save material and electricity.
4. High sawing precision, smooth sawing wood surface, no need to re-process, reduce wood waste.

Technical Parameter
Model
WL 30
WL 50
Max Feeding Width
60 cm
60 cm
Feeding Thickness
0.5-3 cm
0.5-5 cm
Feeding Length
30-400 cm
30-400 cm
Feeding Speed
12 m/min
12 m/min
Feeding Motor
0.55 kw
0.55 kw
Main Motor
5.5 kw
11 kw
Saw Blade Specs
160*(1.6-2.0)*40*24P mm
210*(2.0-2.4)*50*24P mm
Dimension
2100*1000*1100 mm
2100*1000*1100 mm
Weight
400 kg
400 kg

Main Features

1. Single saw spindle, small saw blade diameter and thin saw kerf.
2. Flat and smooth sawing surface (replace planer).
3. Energy-saving and low waste due to the multi-blade design.
4. High feeding speed and greatly improve efficiency.
5. Fast loading, easy operation and high timber utilization.
6. Upper pressing roll automatically increase tensile force to ensure stable feeding.

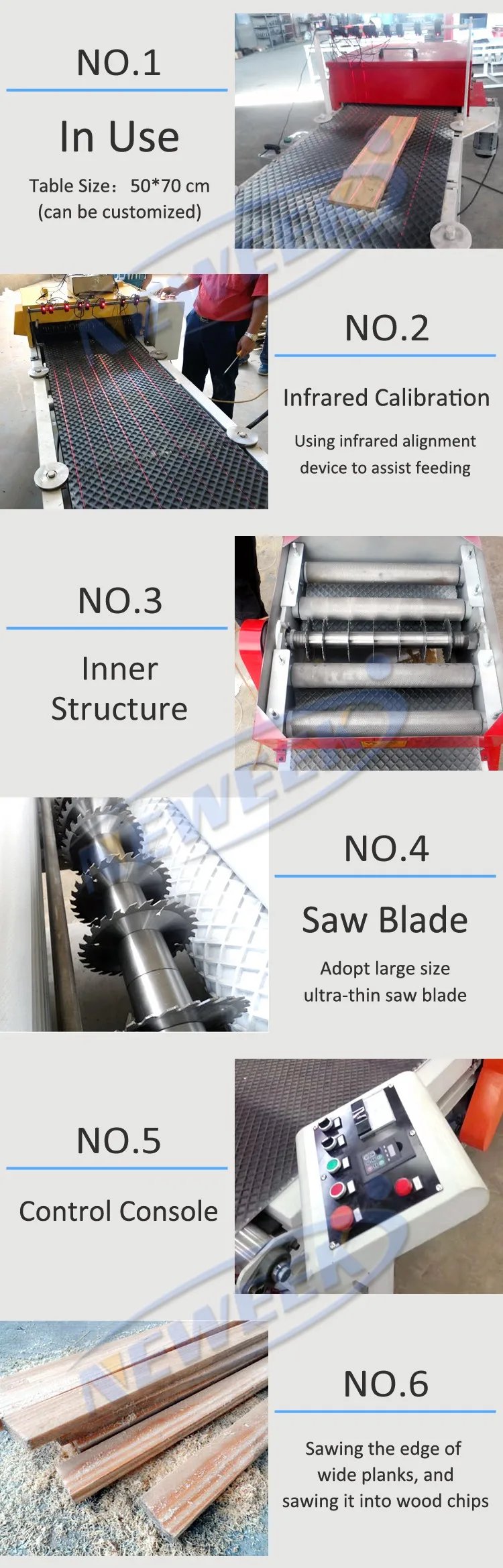

Detailed Images
