NEWEEK agricultural liquid transfer water pump price

FOB Reference Price:Get Latest Price
$135.00 - $500.00 / Sets | 1 Set/Sets (Min. Order)
Horsepower:
0.75 kw
Maximum Flow Rate:
4 m3/h
Maximum Head:
20 m
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 7 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China
Brand Name:
NEWEEK
Model Number:
25-125
Structure:
Single-stage Pump
Usage:
Water
Power:
0.75 kw, 0.75 kw
Pressure:
High Pressure
Keywords:
agricultural liquid transfer water pump price
Impeller structure:
closed impeller
Performance:
high pressure
Flow:
4 m3/h
Rotating speed:
2900 r/min
Head:
20 m
Outline Dimension:
260*230*435 mm
Weight:
28 kg
Packing:
wooden case
Supply Ability
Supply Ability:
600 Set/Sets per Month
Packaging & Delivery
Packaging Details
Packing agricultural liquid transfer water pump price in wooden box.
Port
Qingdao Shanghai Guangzhou
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 7 To be negotiated
Product Description

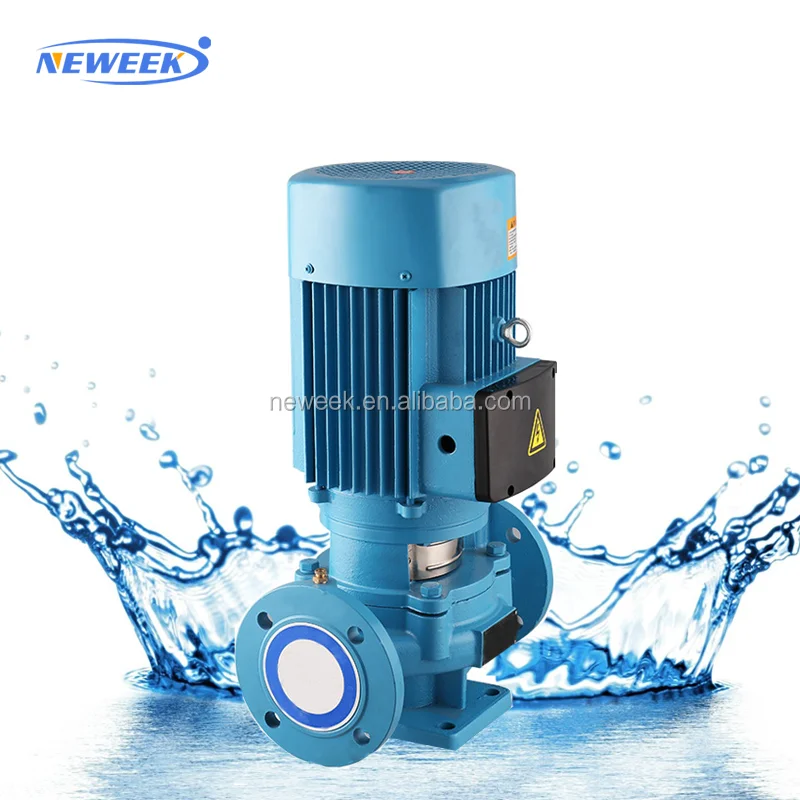

NEWEEK agricultural liquid transfer water pump price

Agricultural liquid transfer water pump are used to deliver clean water and other liquids with physical and chemical properties similar to clean water. Applicable to industrial and urban water supply and drainage, high-rise building pressurized water supply, garden irrigation, fire protection and equipment, temperature T: ≤ 80 °C.
Model
Flow
(m³/h)
Head
(m)
Rotating speed
(r/min)
Power
(kw)
Outline Dimension
(mm)
Weight
(kg)
25-125
4
20
2900
0.75
260*230*435
28
25-125A
3.6
16
2900
0.55
260*230*435
17
25-160
4
32
2900
1.5
300*270*400
39
25-160A
3.7
28
2900
1.1
300*270*415
34
32-100(I)
6.3
12.5
2900
0.75
260*230*435
28
32-125
5
20
2900
0.75
260*230*435
32
32-125A
4.5
20
2900
0.55
260*230*435
30
32-160
4.5
16
2900
1.5
320*270*460
34
32-160(I)
6.3
32
2900
2.2
320*270*490
47
32-200(I)
4.5
50
2900
3
340*330*550
74
32-200(I)A
6.3
50
2900
4
340*330*535
62
The above is a partial parameter display, the pump can be customized according to demand.

1. The impeller is directly mounted on the extension shaft of the motor. The axial and the torque is axially generated by the pump operation, Thus ensuring stable operation of the pump.

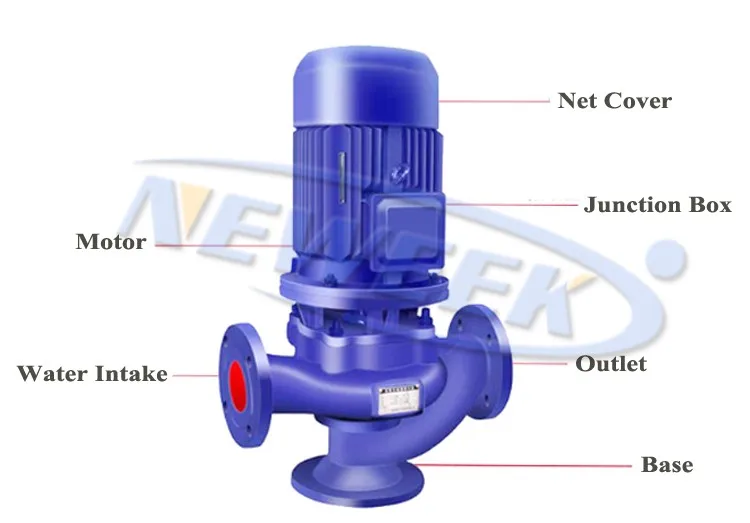

2. Agricultural liquid transfer water pump is a vertical structure, the inlet and outlet diameters are the same, and they are located on the same center line. They can be installed in the pipeline like a valve. They are equipped with mounting feet to increase the stability of The shape is compact and beautiful. Small, low construction investment.
3. The shaft seal adopts mechanical seal or mechanical seal combination, adopts imported titanium seal seal, medium-sized high temperature resistant mechanical seal and hard alloy material, wear-resistant seal, which can effectively increase the service life of mechanical seal.
4. The installation and maintenance is convenient, no need to dismantle the pipeline system, just remove the pump joint nut to extract all the rotor components.
5. The series and parallel operation modes of the pump can be adopted according to the requirements of use, that is, the flow and the head.

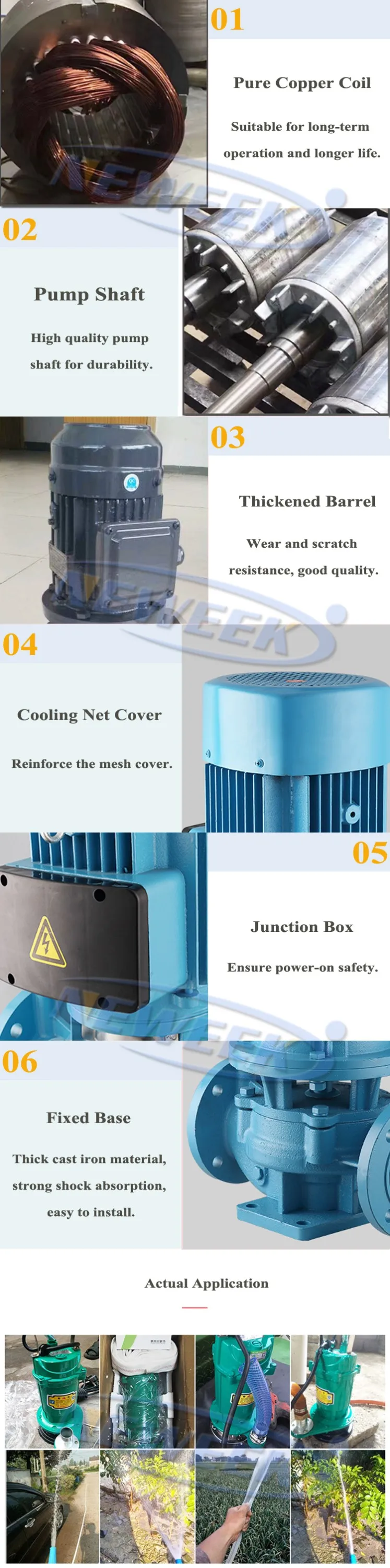

Detailed Images
