NEWEEK 4-5t/h waste plank flaker disc wood chopping machine

FOB Reference Price:Get Latest Price
$750.00 - $7,500.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
WP800
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Production Capacity:
4-5 t/h
Dimension(L*W*H):
1150*1100*925 mm
Condition:
New
Type:
Wood Chipper
Use:
Chipping Wood
Power Type:
Diesel, Electric, Gasoline
Place of Origin:
Henan, China
Brand Name:
NEWEEK
Weight:
550 kg
Certification:
ISO
After-sales Service Provided:
Engineers available to service machinery overseas
Keywords:
waste plank flaker disc wood chopping machine
Motor:
30 kw
Voltage:
110/220/240/380v
Speed:
550 r/min
Knife diameter:
800 mm
No.of knifes:
4
Max processing diameter:
250 mm
Wood chips size:
2-5 cm
Blade size:
250*120*12 mm
Working type:
electric or diesel
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
In general, we pack waste plank flaker disc wood chopping machine in wooden box.
Port
Qingdao, Shanghai, Guangzhou
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 To be negotiated
Product Description

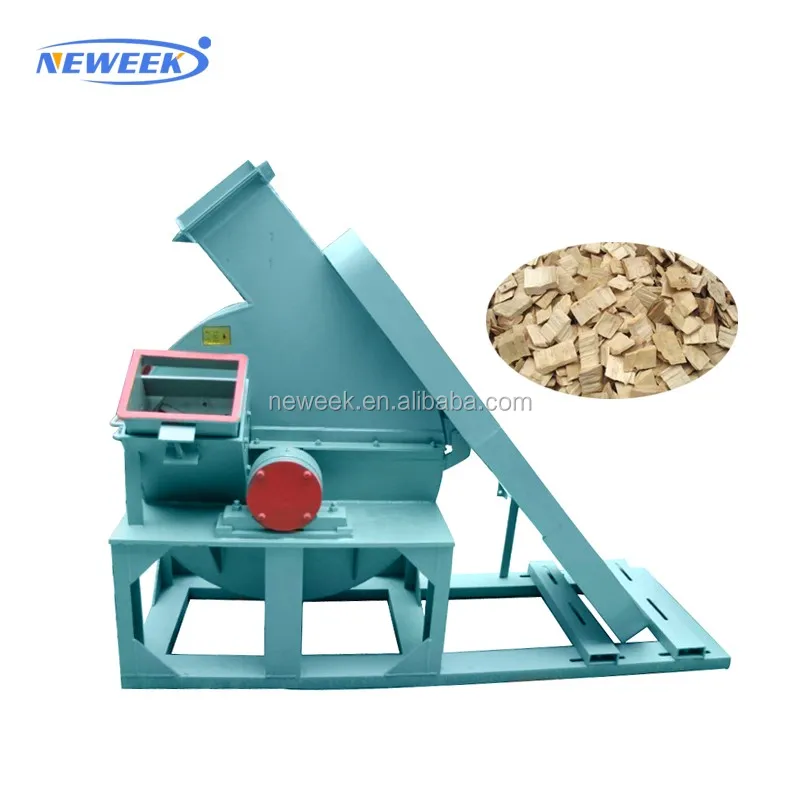

NEWEEK 4-5t/h waste plank flaker disc wood chopping machine

1. Waste plank flaker disc wood chopping machine is mainly composed of cutter head, shaft, bearing shell, frame, etc.
2. The wood first go into the blade cutting mouth, then into the chipper room, produced by wind leaf (four pieces) high-speed wind sends out the mouth.
3. The wood chips size is limited from 2 cm to 5 cm (adjustable).

Technical Parameter
Model
Capacity(t/h)
Motor(kw)
Weight(kg)
Speed(r/min)
Knife diameter
(mm)
No.of knifes
WP420
1
7.5
250
600
420
3
WP600
2-3
18.5
420
650
600
3
WP700
3-4
22
700
600
700
3
WP800
4-5
30
550
550
800
4
WP950
5-7
37
800
550
950
4
WP1150
8-10
75
2100
600
1150
4
WP1410
10-15
90
2800
600
1410
6

Working Principle

Working Principle of waste plank flaker disc wood chopping machine: The wood is fed into through feed port, when it touches to cut blade, along with the cutting knife plate of high-speed rotation to peel and cut, at last, these wood pieces are sent out through high speed steam-flow produced by fan blade in the knife plate.
