NEWEEK diesel timber block disc chipping machine for wood

FOB Reference Price:Get Latest Price
$750.00 - $7,500.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
WP1150
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Production Capacity:
8-10 t/h
Dimension(L*W*H):
1850*1985*1845 mm
Condition:
New
Type:
Wood Chipper
Use:
Chipping Wood
Power Type:
Diesel, Electric, Gasoline
Place of Origin:
Henan, China
Brand Name:
NEWEEK
Weight:
2100 kg
Certification:
ISO
After-sales Service Provided:
Engineers available to service machinery overseas
Keywords:
timber block disc chipping machine for wood
Motor:
75 kw
Voltage:
110/220/240/380v
Speed:
600 r/min
Knife diameter:
1150 mm
No.of knifes:
4
Max processing diameter:
250 mm
Wood chips size:
2-5 cm
Blade size:
250*120*12 mm
Working type:
electric or diesel
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
In general, we pack timber block disc chipping machine for wood in wooden box.
Port
Qingdao, Shanghai, Guangzhou
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 To be negotiated
Product Description

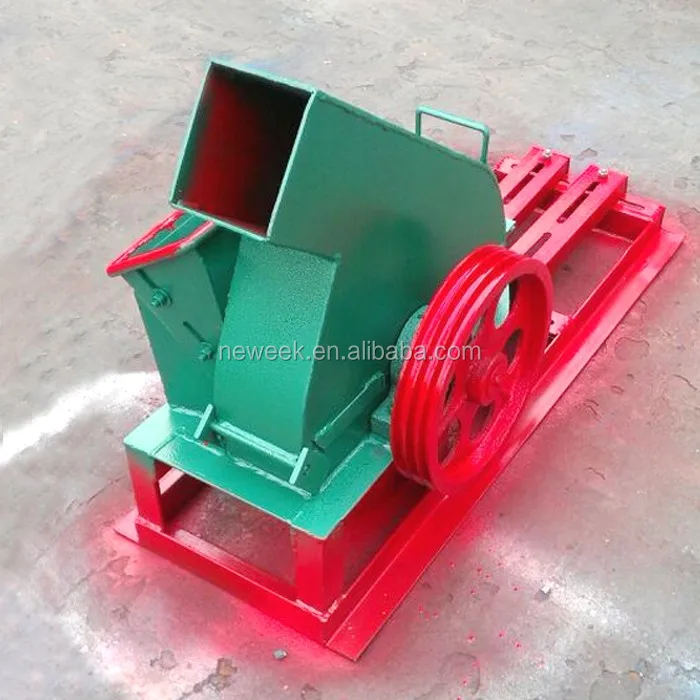

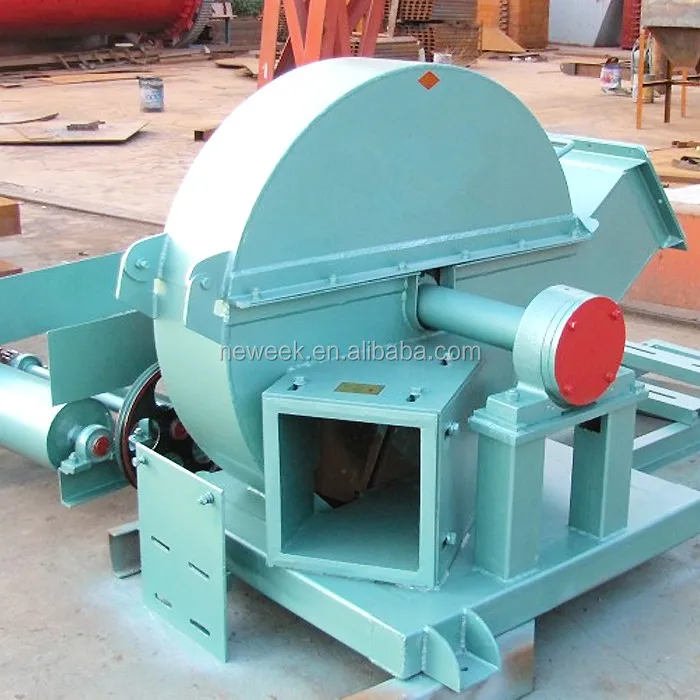

NEWEEK diesel timber block disc chipping machine for wood

1. Timber block disc chipping machine for wood is our products which specially designed for round logs, square blocks, wood staff, wood pieces and chipping.
2. Operation easy, maintenance simple, life is long and the noisy is low.
3. Timber block disc chipping machine for wood would be the best choices for dealing with wood scraps.

Technical Parameter
Model
Capacity(t/h)
Motor(kw)
Weight(kg)
Speed(r/min)
Knife diameter
(mm)
No.of knifes
WP420
1
7.5
250
600
420
3
WP600
2-3
18.5
420
650
600
3
WP700
3-4
22
700
600
700
3
WP800
4-5
30
550
550
800
4
WP950
5-7
37
800
550
950
4
WP1150
8-10
75
2100
600
1150
4
WP1410
10-15
90
2800
600
1410
6

Working Principle

The wood is fed into through feed port, when it touches to cut blade, along with the cutting knife plate of high-speed rotation to peel and cut, at last, these wood pieces are sent out through high speed steam-flow produced by fan blade in the knife plate.
